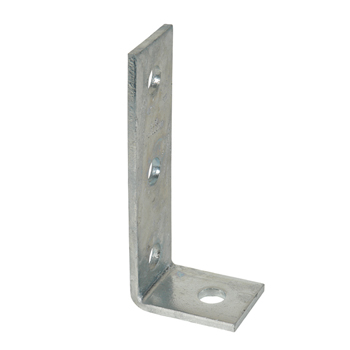

P1278 style angle strut fitting

Zoom

Model:  p1278pro Share

Standard Dimensions:

The following are standard dimensions unless otherwise stated.

All dimensions subject to commercial tolerance.

Hole Size: 14mm diameter

Hole Spacing (From End):
20mm from end of fitting

Fitting Width: 41mm
Dimensions shown are for mild steel components only. Dimensions for stainless steel components may vary.
