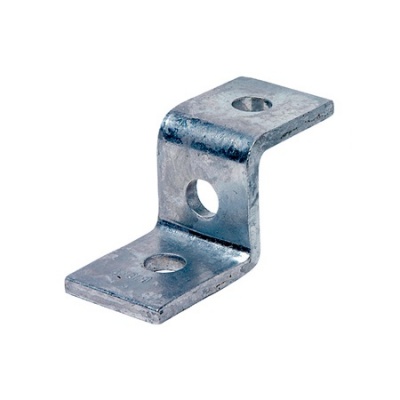

3 hole z shaped bracket

Zoom

Model:  AF3HZ Share

Standard Dimensions:

The following are standard dimensions unless otherwise stated.

All dimensions subject to commercial tolerance.

Hole Size: 14mm diameter

Hole Spacing (From End):
20mm from end of fitting

Fitting Width: 41mm
